| Specifications | |
| Item Code | 221164 |

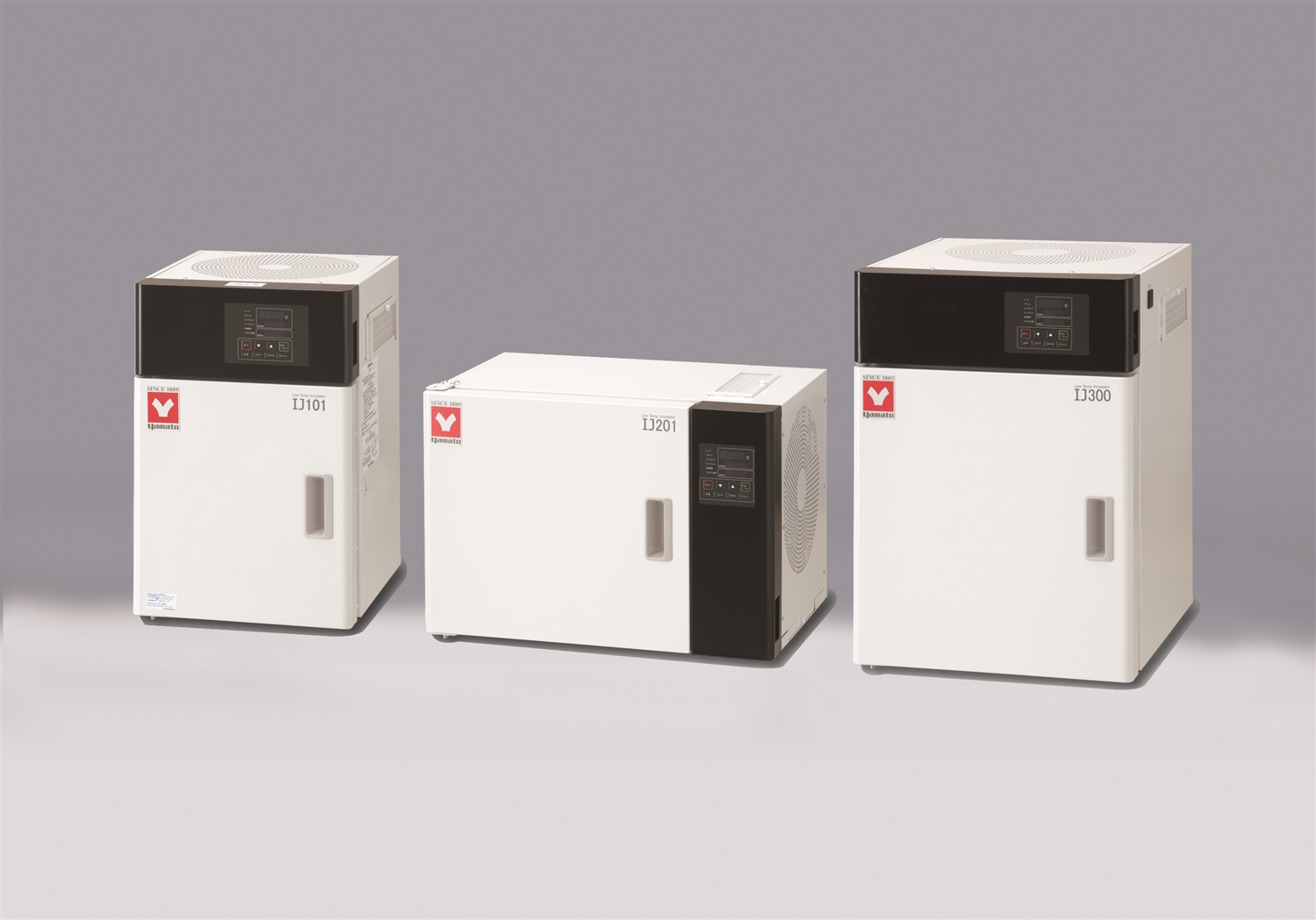

| Model | IJ101 |
| Type | Forced convection |
| Operating Temperature Range | 5～60℃（at room temp.25℃） |
| Temp. Control Accuracy | ±0.3℃（at 37℃） |
| Temp. Distribution Accuracy | ±1.0℃（at 37℃） |
| Time to Max. Temp. | 20～60℃ 60min. |
| Time to Lowest Temp. | 20～5℃ 100min. |
| Interior | Stainless steel |
| Heater | Mica heater 120W |
| Condenser | Peltiert element, Forced radiation type |
| Temp. Control Method | PID |
| Operation Function | Program operation (30 steps x 1, 15 steps x 2, 10 steps x 3), Fixed operation, Quick auto-stop, Auto-stop, Auto-start operation |
| Additional Functions | Calibration off-set, Key-lock function, Auto recovery function at power failure |
| Sensor | Double sensor: Platinum resistance Pt 100Ω (Temp. controller), K-thermocouple(Overheat preventor) |
| Safety Functions | Self-diagnostic function(Temp. sensor error, heater failure, SSR short-circuit, Auto overheat), Overheat prevention(IJ201/301), Liquid pressure overheat preventor, Over-current ELB, Main relay error |
| Shelf Loading Capacity | Approx. 5kg/ shelf |
| Shelf Step | 7 steps |
| Accessories | Shelf(Stainless punching metal) 2pcs., Shelf support 4 pcs., Receiver for drain 1pc. |
| Internal dimensions（W×D×H mm） | 250×250×250mm |
| External dimensions（W×D×H mm） | 350×399×565mm |
| Remarks(dimensions) | 15.6L |
| Power Source | AC115V/AC220V single phase with step-down transformer |
|
Weight |
20kg |
