| Specifications | |||

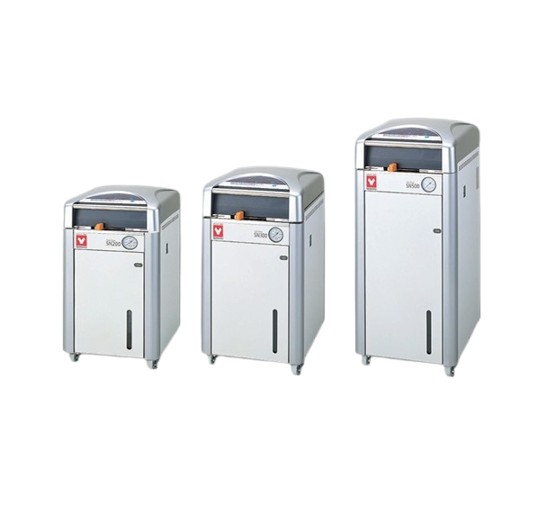

| Model | SN210C | SN310C |
SN510C |
| Operating temp. range | 45~135°C | 45~135°C | 45~135°C |
| Max. operational pressure | 0.255 MPa | 0.255 MPa | 0.255 MPa |
| Cooling | Equipped with cooling fan | Equipped with cooling fan | Equipped with cooling fan |
| Safety devices | Self diagnostic function, locking lid mechanism, safety pressure valve | Self diagnostic function, locking lid mechanism, safety pressure valve | Self diagnostic function, locking lid mechanism, safety pressure valve |
| Internal dimensions | Dia 300 x 305 mm | Dia 300 x 445 mm | Dia 300 x 665 mm |
| Internal capacity | 20L | 32L | 47L |
| Power source AC200-240V 50/60Hz | SN210C 10~8.5A | SN310C 10~8.5A | SN510C 12~10A |
| Weight | 65kg | 75kg | 85kg |
