Thiết bị chuẩn độ hiệu suất cao với mức giá thấp hơn.
  • Code
    AT-710B
Share :

Product description

Specifications

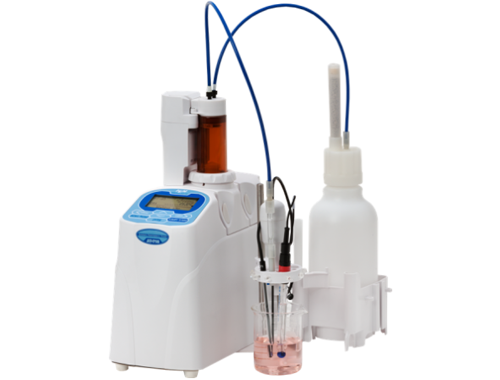

Type Automatic Potentiometric Titrator
Model AT-710B
Product configuration AT-710 + IDP-100 + Propeller stirrer
Detection range 1) Potentiometric : -2000mV to +2000mV
2) pH : -20.000 to 20.000pH
3) Temp. : 0 to 100°C
Titration mode Auto Titration , Auto Intermit , Intermit , Stat
Method 20 (Max 2 methods can be linked)
Kinds of titration Potentiometric (acid/base , redox , precipitation) , Photometric , Polarization , Conductivity
Titration form Full titration (Auto EP detection) , EP Stop , Level Stop
Special application Measurement of electrode potential (pH , potential) , Acid dissociation constant (pKa)
Key operation Sheet key
Displays 1) White LED-backlit LCD
2) English / Japanese / Mandarin Chinese / Korean / Russian / Spanish
3) 1-channel display
Calculation Concentration of content , statistics data processing (mean , SD and RSD) and automatic averaging of blank and factor value
Data storage 50 samples
GLP conformance Registration of operator / Record of check results / Record of electrode calibration / Verification of burette capacity / Management of conduction time
Burette size 20mL glass burette with brown cover (Standard)
Optional burette units : 10mL , 5mL , or 1mL
Burette accuracy 50mL burette(Auto dispenser) +/- 0.5mL
20mL burette +/- 0.02mL ; reproducibility +/- 0.01mL
10mL burette +/- 0.015mL ; reproducibility +/- 0.005mL
5mL burette +/- 0.01mL ; reproducibility +/- 0.003mL
1mL burette +/- 0.005mL ; reproducibility +/- 0.001mL
Preamplifier 1) STD : pH (mV) and mV , 2 inputs (Standard)
2) PTA : pH (mV) , mV and photometric , 3 inputs
3) POT : pH (mV) , mV and polar , 3 inputs
4) CMT : pH (mV) , mV and conductivity, 3 inputs (factory setting required)
5) TET : pH (mV) 2 ways and mV , inputs (factory setting required)
External I/O RS-232C port x3 :
for Dot matrix printer/Electronic balance/Data Capture Software (SOFT-CAP)
SS-BUS x1 :
for Multiple sample changer , APB
ELE. x1 :
for Smart electrode
USB x1 :
for USB flash drive , Thermal printer , A4 printer , Keyboard , Barcode reader , Foot switch , USB HUB
TEMP.COMP. x1 :
Input terminal for temperature sensor to correct reagent volume , sensor Pt100 , temperature reading accuracy : +/- 0.5°C (burette 1 only)
Extensibility Automatic piston burette :
Can control max 10 burette drives (Including two built-in burette drives)
Multiple sample changer :
CHA-700
Ambient condition 1) Temperature : 5 to 35°C
2) Humidity : 85%RH or below (no condensation)
Power Supply Main unit: DC24V（Main unit), AC100-240V±10％, 50/60Hz（AC adapter）
Printer: DC7V（Main unit), AC100V±10％, 50/60Hz（AC adapter）
Power consumption Main unit : Approx. 20W
Printer : Approx. 7W
Dimensions Titration unit : 141(W) x 296(D) x 367(H)mm (not incl. tubing)
Printer : 106(W) x 180(D) x 88(H) mm
Weight Titration unit : Approx. 4.0kg
Printer : Approx. 0.4kg
Conformity standard CE marking EMC : EN61326-1 LVD : EN61010-1 RE Directive
Burette unit EBU FCC Part15 SubpartC FCC ID : 2ABSVEBU01
